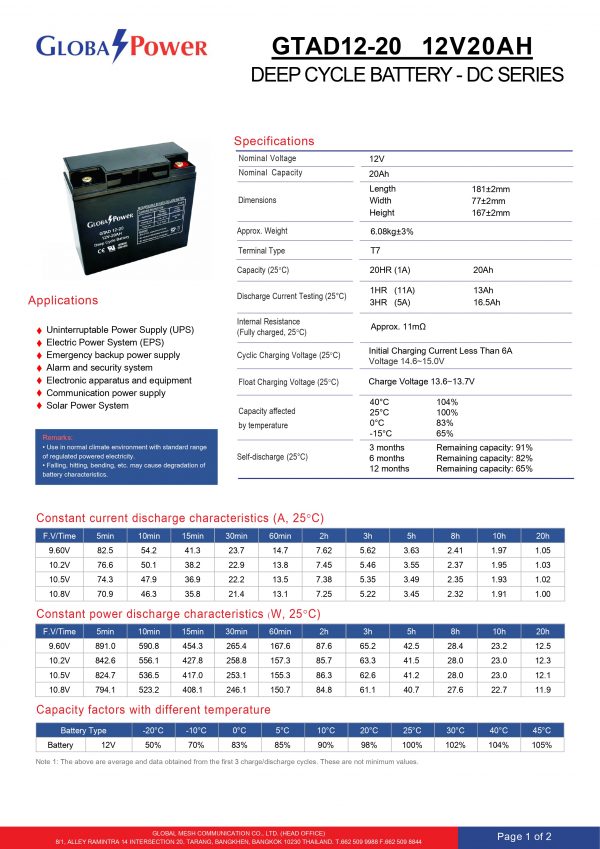

GTAD 12V20AH
| Nominal Voltage |
12V |
| Nominal Capacity (10HR) |
20Ah |
| Terminal Type |
T7 |
| Self-discharge (25°C) |
| 3 months |
Remaining capacity: 91% |
| 6 months |
Remaining capacity: 82% |
| 12 months |
Remaining capacity: 65% |
|
| Cyclic Charging Voltage (25°C) |
Initial Charging Current Less Than 6A Voltage 14.6~15.0V |
Float Charging Voltage (25°C)
|
Charge Voltage 13.6~13.7V |
| Capacity (25°C) |
20HR (1A) 20Ah |
| Internal Resistance (Fully charged, 25°C) |
Approx. 11mΩ |
| Capacity affected by temperature |
| 40°C |
104% |
| 25°C |
100% |
| 0°C |
83% |
|
| Dimensions (LxWxH) |
| Length |
181±2mm |
| Width |
77±2mm |
| Height |
167±2mm |
| Total height |
167±2mm |
|
| Weight |
6.08kg±3% |
Applications
- Uninterruptable Power Supply (UPS)
- Electric Power System (EPS)
- Emergency backup power supply
- Alarm and security system
- Electronic apparatus and equipment
- Communication power supply
- Solar Power System
