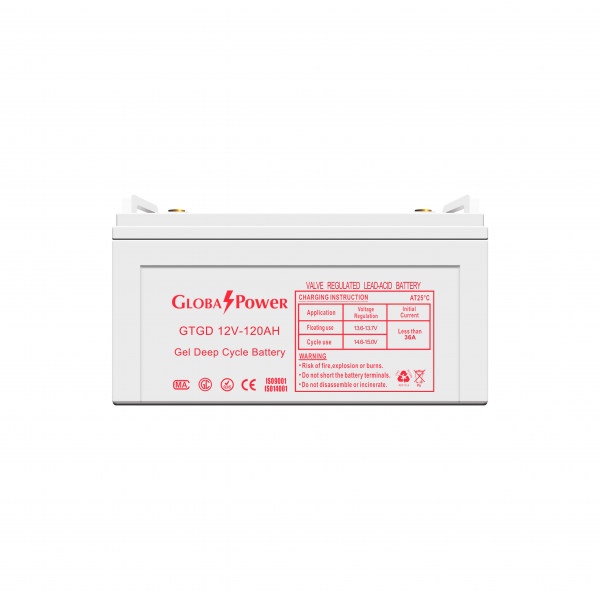

GTAD 12V120AH
Nominal Voltage |
12V |
Nominal Capacity (10HR) |
120Ah |
Terminal Type |
T11 |
Self-discharge (25°C) |
Global Power batteries may be stored for up to 6 months at 25°C(77°F) and battery should be recharged before use. For higher temperatures the time interval will be shorter. |
Cyclic Charging Voltage (25°C) |
Initial Charging Current less than 45.0A. Voltage 14.6V~15.0V at 25°C (77°F) Temp. Coefficient -30mV/°C |
Float Charging Voltage (25°C)
|
No limit on Initial Charging Current Voltage 13.6V~13.7V at 25°C (77°F) Temp. Coefficient -20mV/°C |
Nominal Operating Temp. |
25°C±3°C (77°F±5°F) |
Internal Resistance (Fully charged, 25°C) |
Approx. 4mΩ |
Operating Temp. Range |
Discharge |
-15°C~50°C (5°F~122°F) |
Charge |
0~40°C (32°F~104°F) |
Storage |
-15°C~40°C (5°F~104°F) |
|
Dimensions (LxWxH) |
Length |
406 ±3mm |
Width |
174 ±2mm |
Height |
215 ±2mm |
Total height |
233 ±2mm |
|
Weight |
32kg |
Applications
- Uninterruptable Power Supply (UPS)
- Electric Power System (EPS)
- Emergency backup power supply
- Alarm and security system
- Electronic apparatus and equipment
- Communication power supply
- Solar Power System
